Keithley – 2400 Standard Series SMU
| Aplicatii | Educational, R&D |
| Curent maxim | <10A |
| Familie | 2400 |
| Parteneri | Keithley |
| Putere maxima | <100W |
| Software dedicat | Da |
| Tensiune maxima | >1kV |
Detalii produs Keithley – 2400 Standard Series SMU
Keithley’s Standard Series 2400 Source Measure Unit (SMU) Instruments offer four-quadrant precision voltage and current source/load coupled with measurement. Each SMU instrument is both a highly stable DC power source and a true instrument-grade 6½-digit multimeter. The power source characteristics include low noise, precision, and readback. The multimeter capabilities include high repeatability and low noise.

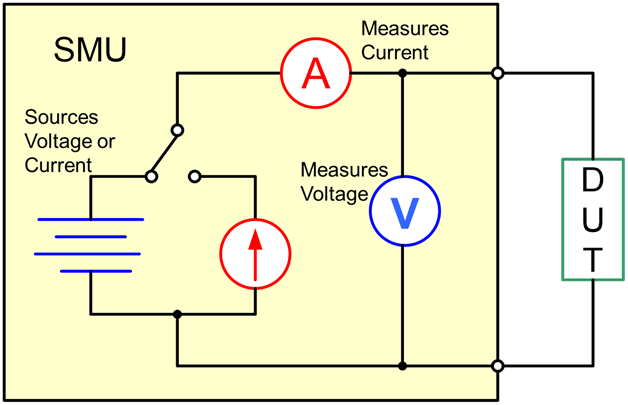

A precision instrument for I-V characterization
The tightly-coupled nature of a SourceMeter instrument provides many advantages over separate instruments. The ability to fit a source and a meter in a single half-rack enclosure saves valuable rack space and simplifies the remote programming interface.
Highlights
- A precision instrument used for I-V characterization on a wide variety of devices and materials
- An SMU can source current or source voltage
- An SMU can measure both current and voltage

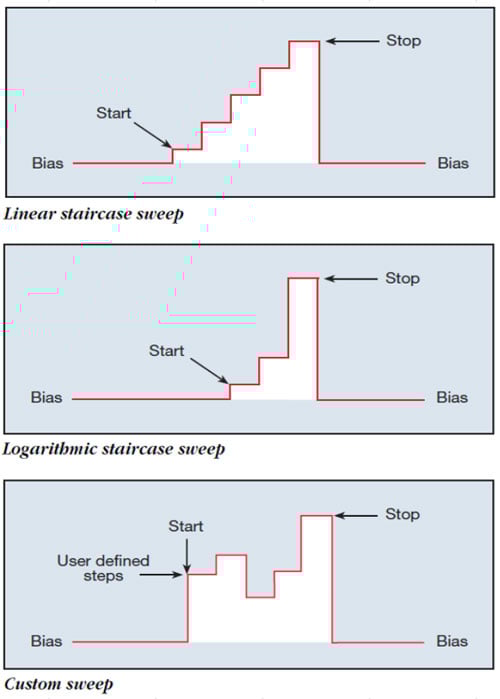

Greatly accelerate throughput with built-in voltage/current sweep capabilities
SourceMeter instruments provide sweep solutions that greatly accelerate testing with automation hooks for additional throughput improvement. This is true whether you are performing sweeps on transistors, simply verifying connector integrity, characterizing device performance, or virtually any DC volt-amp characteristic with high precision.
Highlights
- Linear staircase sweeps
- Logarithmic staircase sweeps
- Custom Sweeps

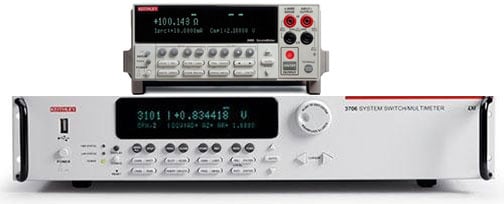

Integrate with switching systems for fast, multipoint testing
The instruments in the SourceMeter family offer wide versatility, so they make great solutions for a variety of applications in many industries. For seamless integration in fast multipoint testing applications, combine a SourceMeter instrument with a Keithley switch system.
Highlights
- Test semiconductor devices
- Test circuit Protection devices
- Test optoelectronic components
- Use for accelerated stress testing
Preparing engineering students to turn ideas into reality
Keithley SourceMeter SMUs are excellent tools to teach students the concepts of Ohms Law and I-V characterization for lab exercises to better understand how electronic devices behave and are used. SMUs give students the experience they need so they are prepared to meet the industry standards.
Highlights
- Combines the power of 5 instruments in one
- Simplifies the teaching lab bench
- Useful in graduate research
