Tektronix – AFG31000 Arbitrary Function Generator
| Aplicatii | Automotive, Educational, R&D |
| Familie | AFG31000 |
| Frecventa output | <100MHz, 100MHz-500MHz |
| Lungime semnal | 1Mpts-100Mpts |
| Numar canale output | 2 |
| Parteneri | Tektronix |
| Rezolutie | 14 bit |
| Sample rate | <1 GS/s, 1GS/s-5GS/s |
Detalii produs Tektronix – AFG31000 Arbitrary Function Generator
The AFG31000 series with InstaView™️ technology revolutionizes advanced research applications. With the ability to replicate real-world signals, it provides engineers with the tools they need to generate precise waveforms, monitor them in real-time, and analyze results easily.
This flexible tool empowers researchers to push the boundaries of their experiments and achieve breakthrough results. The AFG31000 series is the ultimate choice for high-performance and flexible waveform generation, making it a valuable asset for advanced applications.
Unlock new possibilities and avenues of research in your field with the support of the AFG31000 Series.
Verify your waveform at the DUT
Patented InstaView™ technology enables you to view the real waveform at the device under test (DUT) directly on the AFG without the need for an oscilloscope, probes, or additional equipment, saving test time and eliminating the risk of unmatched impedance in your test results.
Double pulse test in under a minute
The AFG31000 is the first function generator on the market that includes built-in double pulse test software. Now you can generate two waveforms with varying pulse widths (from 20 ns to 150 µs) in under a minute directly on the touchscreen display. No need for an external PC application or manual programming.
Measure switching parameters and evaluate the dynamic behaviors of MOSFET and IGBT power devices.
High-fidelity signals with advanced mode
Generate long, precise waveforms in continuous mode with lengths up to 16 Mpts per channel right out-of-the-box. Variable sampling clock technology guarantees you will never lose any waveform data. Available upgrades let you take your testing to the next level and build and program complex waveforms at one-tenth the cost of a traditional AWG.
With optional upgrades you get:
- Memory extension to 128 Mpts per channel (option MEM)
- Sequence/triggered/gated modes (option SEQ) with up to 25 entries and controls for: branching, repeat, wait, jump, go-to, external trigger in, manual trigger, timed trigger, and SCPI command, for building long waveforms with complex and flexible timing.
Simplified ARB waveform creation
The built-in arb editing tool, ArbBuilder, includes all operations to create, edit and transfer an ARB waveform, eliminating the need to connect or transfer files to a PC. The amplitude and offset data is stored in the waveform, removing the need to adjust the settings after loading a normalized arb.
„The advanced features on this AFG could cut my typical setup and test cycle nearly in half”
– John Moore, Engineering Manager, TZ Medical
Smart user interface

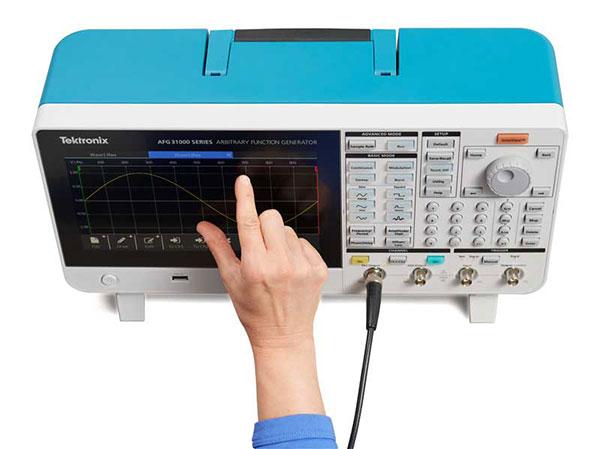

Learn faster and work quicker with the largest AFG touchscreen on the market. The 9-inch screen works just like a smart device so you can pinch, zoom and scroll to easily locate settings and parameters on the simplified menu and find shortcuts to frequently used settings.
Need more than two channels?
If you need more than two channels of waveforms to stimulate your device under test (DUT), multi-sync enables you to quickly sync up two or more units. The onscreen wizard will lead you through the process of cable connections and settings in less than three minutes.
