Tektronix – MSO5 LP
| Aplicatii | Automotive, R&D |
| Banda frecventa | sub 3,5 GHz, 501 MHz – 1 GHz, >1MHz, <6 GHz |
| Canale digitale | Da |
| Familie | MSO5 |
| Numar canale | 8 |
| Parteneri | Tektronix |
| Portabil | Nu |
| Rezolutie ADC | 12 bit |
Detalii produs Tektronix – MSO5 LP

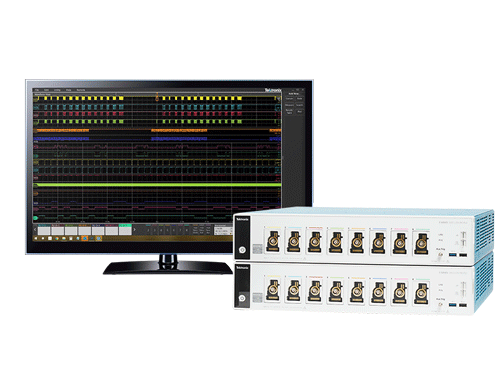

Instrument more of your experiment without adding racks
Replace your oscilloscopes and fit 6x more channels into your existing rack space. The 5 Series MSO LP offers 8 channels, plus an auxiliary trigger input, in a space-saving 2U instrument – at a low cost-per-channel. Each the 8 FlexChannel™ inputs can be used as 1 analog channel or 8 digital channels.
High-fidelity captures and high-quality data
With 500 MHz or 1 GHz analog bandwidth, 6.25 GS/s sample rate on all channels, and 125 M record length, the 5 Series MSO Low Profile has the performance you need to capture accurate waveform data with the best possible signal integrity.
See more signal detail than ever with 12-bit vertical resolution and ENOB of 7.6 bits at 1 GHz
12-bit analog-to-digital converters provide 16 times the vertical resolution of traditional 8-bit ADCs. Measure small signal details, even if they are riding on large signals.
Combine multiple high-speed digitizers
Turn two or more remote digitizers into a single virtual instrument. Use TekScope PC software to get fast results from multiple instruments, without programming.
- View all channels simultaneously
- Rearrange or group channels
- Unlimited automated measurements
- Easy Ethernet access
- High speed data transfers with TekHSI enabled through both TekScope PC and a standalone python package
Remote Control and Automation
Test automation increases test speed, reduces mistakes, and ensures that every device meets the same standard of quality. Low profile oscilloscopes efficiently execute automated procedures without wasting valuable rack space. With the right resources, tools, and tutorials, it’s easier than ever to produce fast, consistent results. Get started quickly with developer resources, Python instrument drivers, or user-friendly PC applications.
- Comprehensive, fully-supported programmable interfaces enable development of robust custom software
- Simplify automation with Tektronix’ free Python Drivers Package
- TekScope PC Software offers the same analysis capability available on Tektronix oscilloscopes, on your PC. It supports the new TekHSI high speed interface for much faster data transfers to your PC
- Built-in *eScope or Windows Remote Desktop let you control your scope over any LAN
Datasheet-ul se poate accesa aici, pentru o descriere mai detaliata a caracteristicilor.
