Tektronix – MSO5B
| Aplicatii | Automotive, Educational, R&D |
| Banda frecventa | sub 3,5 GHz, 100 MHz – 500 MHz, 501 MHz – 1 GHz, 1 GHz – 4 GHz, >1MHz, <6 GHz |
| Canale digitale | Da |
| Familie | MSO5 |
| Numar canale | 4, 6, 8, 4-8 |
| Parteneri | Tektronix |
| Portabil | Nu |
| Rezolutie ADC | 12 bit |
Detalii produs Tektronix – MSO5B
5 Series B MSO Mixed Signal Oscilloscope
Get a complete view of your design with high-fidelity waveforms, insightful measurements, unique spectrum analysis, and flexible probing. Experience the intuitive user interface appreciated by engineers everywhere.
Insightful measurements
See signal details with high-resolution 12-bit analog-to-digital converters. Change your point of view whenever you wish with multi-channel spectrum analysis, measurement statistics, tables and trend plots.
- 12-bit resolution at 1.25 GHz; 16-bit resolution at 50 MHz
- Built-in DDCs enable multi-channel, synchronized spectrum analysis
- Results tables, measurement statistics, histograms, and trend plot views
Advanced solutions
The 5 Series adapts to suit your needs with a wide range of application-specific measurements. Add advanced analysis packages individually or install application bundles to address more diverse workloads.
- Support for over 25 serial protocols covering the most common interfaces
- Advanced single-phase and three-phase power analysis packages
- Measurement tools for signal integrity and power integrity
- Optional Windows® operating system lets you run PC software

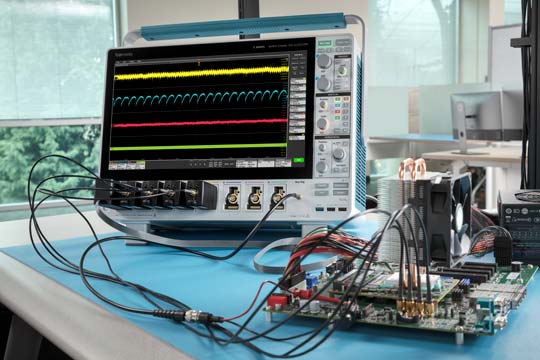

More ways to see more signals
Versatile inputs and advanced probing technology let you see more.
- Up to 8 FlexChannel™ inputs for up to 8 analog or 64 digital signals, plus an external trigger input
- Includes 500 MHz or 1 GHz probes with just 3.9 pF input capacitance
- TekVPI probe interface supports a wide range of active, differential, isolated and current probes
Work and collaborate almost anywhere
Capture data outside the lab and collaborate easily with engineers on the next bench or in the next time-zone.
- Using just a web browser, connect and control the scope within your own network
- Analyze data on or off the scope with TekScope™ PC analysis software that works just like the scope
- Optional TekDrive one-button cloud storage facilitates record-keeping and collaboration
- Analyze data on or off the scope with TekScope™ PC analysis software that works just like the scope
- TekHSI high speed interface offers much faster data transfer from your instrument to your PC
