Masurare si control / Tektronix – MSO6B

Tektronix – MSO6B

Aplicatii Automotive, R&D
Banda frecventa sub 3,5 GHz, 3,5 GHz – 7,5 GHz, 7,5 GHz – 20 GHz, 1 GHz – 4 GHz, peste 4 GHz, >1MHz, <6 GHz, 6 GHz – 14 GHz
Canale digitale Da
Familie MSO6B
Numar canale 4, 6, 8, 4-8
Parteneri Tektronix
Portabil Nu
Rezolutie ADC 12 bit

Detalii produs Tektronix – MSO6B

Troubleshoot and validate high-speed designs with bandwidth that starts at 1 GHz and goes up to 10 GHz . Get accurate measurements with low noise and sample rate up to 50 GS/s . See more of your design with 6- and 8-channel models.

Lowest noise. More detail.

See signal details you couldn’t see before.

  • Lowest input noise enabled by new TEK061 front-end ASICs
  • 12-bit resolution at 5 GHz and up to 16-bit resolution at 200 MHz
  • < 55 µV of noise at 1 mV/div and 1 GHz
  • < 1.25 mV of noise at 50 mV/div and 10 GHz

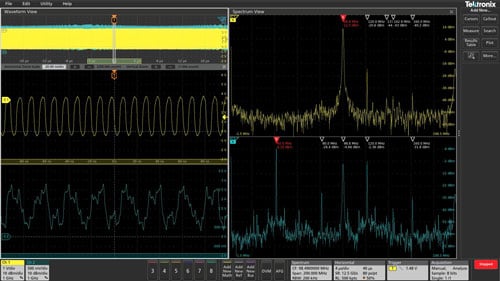

Synchronized multi-channel spectrum analysis

Get 4, 6 or 8 channels of spectrum analysis. Hardware digital downconverters (DDCs) in parallel with time domain signal processing unlock exciting capabilities.

  • Any analog channel can be viewed as a waveform, spectrum, or both
  • Plot and trigger on changes in RF frequency or magnitude
  • Spectrums and time domain waveforms are synchronized to correlate RF and time domain events
  • Spectrum controls such as center frequency and RBW are completely independent of time domain controls

Advanced analysis simplified

Characterize jitter on GHz clocks and serial buses with ease. Bring statistics into your everyday toolkit with integrated measurements. Use the same simple drag and drop action to add advanced and everyday measurements.

  • Automated measurements and trend analysis
  • Spectrum View synchronized multi-channel spectrum analysis
  • Advanced jitter analysis
  • Advanced power analysis
  • Power rail measurements
  • Memory analysis and debug
  • High-speed serial compliance
  • 5G NR signal analysis

Fidelity begins at the probe tip

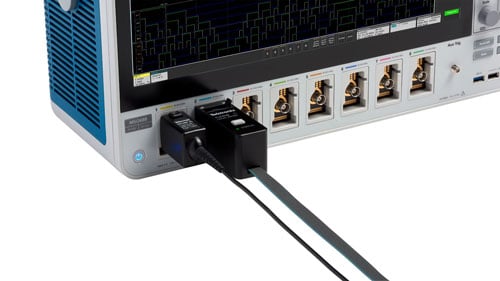

With 4, 6 or 8 FlexChannel® inputs you can browse your circuits with the included 1 GHz probes. Connect high performance single-ended active probes or differential probes, or do both at once with TriMode probes. Connect a TLP058 logic probe and get 8 digital channels on any FlexChannel input to expand your system visibility.

  • Built-in 1 MΩ and 50 Ω input terminations
  • 1 GHz low-loading passive probe for each input, included
  • TekVPI probe interfaces with 10W of probe power per channel for differential, current, power rail, and optically isolated probes
  • TDP7700 Series 4, 6, 8 and 10 GHz TriMode probes – perfect for measuring high-speed communications

Get it done

Add capabilities when you need them and for as long as you need them. Share data instantly in an integrated cloud-based workspace. All to get things done, fast.

Tekscope

Specification Overview

Input Channels
4,6 or 8 FlexChannel inputs.
Each FlexChannel provides 1 analog signal input or 8 digital logic inputs with TLP0581 probe

Bandwidth 1
1, 2.5, 4, 6, 8, 10 GHz

Sample Rate
50 GS/s on 2 analog channels
25 GS/s on 4 analog channels
12.5 GS/s on > 4 analog channels

Record Length 1
Up to 1 Gpoints on 4 channels
Up to 500 Mpoints on > 4 channels

Signal Generator 1
13 standard waveform types, plus arbitrary

Digital Voltmeter 2
4 digit

Trigger Frequency Counter 2
8 digit

Display
15.6-inch (385 mm)
TFT color HD (1920 x 1080) resolution Capacitive (multi-touch) touchscreen

1 – Optional and upgradeable
2 – Free with product registration

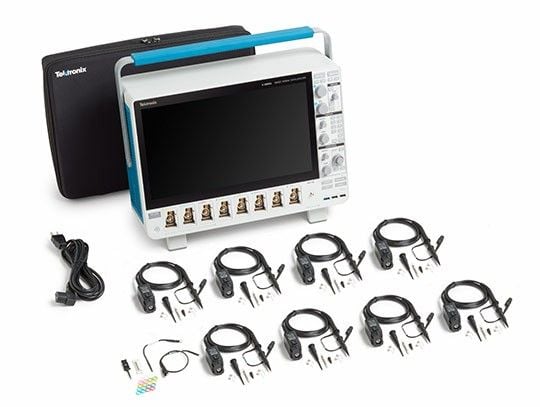

What’s in the box?

  • One TPP1000 1 GHz, low-C passive probe for each channel, with accessories
  • Front cover with accessory pouch
  • Power cord
  • Printed Installation Manual covers safety and basic operation
  • Comprehensive built-in online help
  • Certificate of traceability
  • 1-year warranty on the instrument and included probes
What's in the box?

Datasheet-ul se poate accesa aici, pentru o descriere mai detaliata a caracteristicilor.
