Tektronix – TBS2000B

Aplicatii Educational
Banda frecventa sub 3,5 GHz, sub 100 MHz, 100 MHz – 500 MHz, <6 GHz
Canale digitale Nu
Familie TBS2000B
Numar canale 2, 4
Parteneri Tektronix
Portabil Nu
Rezolutie ADC 8 bit

Detalii produs Tektronix – TBS2000B

The new TBS2000B Digital Storage Oscilloscope is great at performing an oscilloscope’s most important jobs – looking at and measuring signals. See more with its bigger 9-inch display with 15 horizontal divisions for more time per screen and 5M record length to capture long time windows. Measure more with handy cursors and powerful 32 automatic measurements. Share more with Wi-fi connectivity and 100-BaseT Ethernet port. This affordable scope delivers the performance you need.

50% more signal.

When you see more signal, you find anomalies faster. With an impressive 9-inch WVGA display and 15 horizontal divisions —allowing you to see 50% more signal—the TBS2000B digital storage oscilloscope not only helps you see the big picture, it gives you a clearer picture. A 5-million point record length lets you capture long time windows with higher timing resolution. Plus, the updated front-panel waveform navigation controls let you can easily pan and zoom through long records.

Measure signal parameters with confidence

The TBS2000B digital storage oscilloscope is loaded with easy-to-use features. The new front end design with higher 2GS/s sample rate offers lower noise and higher effective bits for more accurate measurements. With 32 automated measurements, you can measure the most commonly-needed parameters easily and more accurately. Analyze your signals with new on-waveform cursor readouts – just like a textbook.

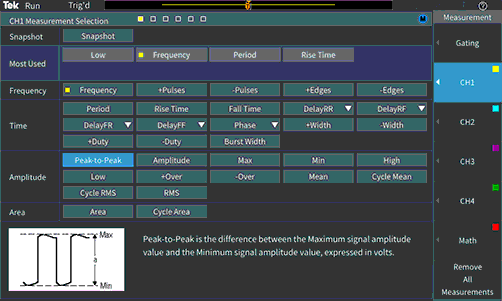

Measure common parameters with 32 automated measures on the TBS2000B oscilloscope

Software Solutions

Driven by the rapid transition to remote-hybrid learning, there are a number of new Tektronix software solutions which help remote access, data analysis, as well as remote data sharing and collaboration.

Learn more about each software offering, and how it can enhance the remote reaching lab Learning experience.

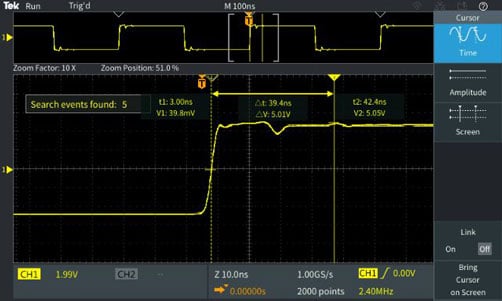

Search and mark parameters easily with the TBS2000B oscilloscope

New features and options make the best scopes better

NEW Features

  • 5M point record length, 200 MHz bandwidth, and 2GS/s sample rate capture and display significantly more signal to debug and validate designs faster.
  • New lower noise front end design offers lower random noise, better signal integrity and more accurate measurements.
  • TekVPI™ probe interface supports wide range of active, differential, and current probes with automatic scaling and units.
  • On-waveform cursor readouts with search and mark features enable easy identification of events that occur in the acquired waveform.
  • Educators can disable the autoset, cursors, and automated measurements to facilitate teaching basic concepts.
  • Bandwidth is field-upgradeable.
USB Wi-FI support on the TBS2000B oscilloscope

Control and Share Remotely

The TBS2000B supports remote communication / control via USB or Ethernet. With two USB host ports and a 100BaseT Ethernet port, it is easy to share measurements and collaborate – with your lab partner or across the globe. Plus, the included software lets you easily connect to your PC to grab screen images and analyze data.

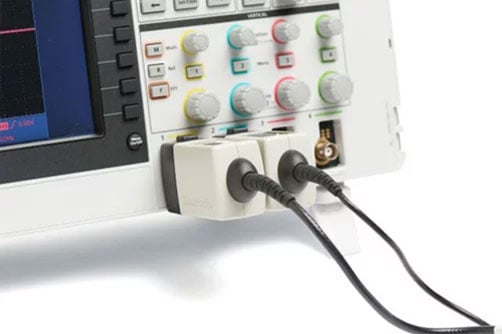

The TekVPI probe interface enables communication between the TBS2000B oscilloscope and the latest current and differential probes

Power measurements made easy

The TekVPI™ probe interface sets the standard for ease of use in probing. In addition to supporting standard BNC probes, it also allows you to use the latest-generation active voltage and current probes. TekVPI enables communication between the TBS2000B and the latest current and differential voltage probes, simplifying measurement setups and extending your range of applications.

Highlights

  • Automatically communicate scale factors to the oscillscope.
  • Probe guidance such as open-jaw errors, offset settings and degauss requirements are presented on oscilloscope display.
  • No external power supply is required to power the probe.

Datasheet-ul se poate accesa aici, pentru o descriere mai detaliata a caracteristicilor.
