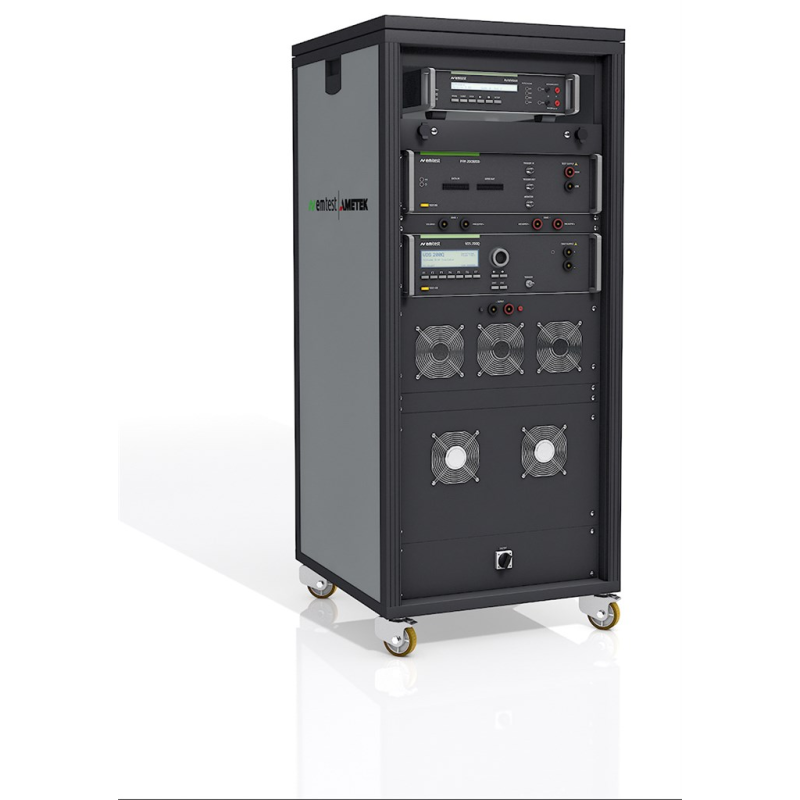

VDS 200Qx.2 Series
| Aplicatii | Automotive, Educational, EMC |
| Parteneri | Ametek-CTS |
Detalii produs VDS 200Qx.2 Series
VDS 200Qx.2 – Four Quadrant Battery supply simulator and DC voltage source. The VDS 200Qx.2 series is used to simulate the various battery supply waveforms recommended by international standards and by car manufacturer requirements. Especially the manufacturer requirements are an important area covered by the VDS 200Qx.2 series as there is a large variety of requirements. Secondly, the VDS 200Qx.2 series serve as powerful DC voltage supplies for the DUT during the tests with automotive transients. The VDS 200Qx.2 series covers all three supply voltage categories (48 V, 24 V and 12 V). Their current capability ranges up to 200 A depending on the model and your application.
- Output voltage -20 … +80 VDC
- Current up to 200 A (600 A peak)
- Four quadrant, bipolar amplifier
- Fast step response time
- Very low default Ri: <10 mOhm (programmable 10 – 200 mOhm)
- Bandwidth 150kHz, full range
- Extended bandwidth up to 250 kHz, max. 40Vpp
- Temperature-controlled air cooling
